NEW QUESTION # 19
Which of the following statements about optical power vs amplification stages is TRUE?
- A. Ingress amplifiers are always more powerful [than egress amplifiers, to reduce the impact of non-linear effects.
- B. The Optical Supervisory Channel (OSC) is amplified when passing through all amplifier types, except for Raman which is not based on EDFA.
- C. When multiple channels pass through a shared port (for example, an amplifier line interface), the total aggregated power reflects the number of channels currently present.
- D. When channels pass through amplifiers, all of them always experience a similar amplification.
Answer: C
Explanation:
Explanation
The statement that when multiple channels pass through a shared port (for example, an amplifier line interface), the total aggregated power reflects the number of channels currently present is TRUE. This means that the more channels are present, the higher the total output power will be, and vice versa. This is because each channel contributes to the total power by its own power level, and the amplifier tries to maintain a constant gain for each channel2. Therefore, the total output power depends on both the input power and the number of channels3. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical amplifiers, explained by RP; optical amplification, Amplifier chains, explained by RP; amplifier stages, preamplifier ...
NEW QUESTION # 20
Which of the following statements best describes the payload type setting?
- A. Payload type attribute is recorded within the client payload and must be entered manually.
- B. Payload type attribute is recorded within the OTN overhead and can be set automatically or manually.
- C. Payload type attribute Is recorded within the client payload and can be set automatically.
- D. Payload type attribute is recorded within the OTN overhead and must be entered manually.
Answer: C
Explanation:
Explanation
The payload type setting is an attribute that is recorded within the client payload and can be set automatically or manually. The payload type setting indicates the type of client signal that is carried by the OTN frame, such as Ethernet, Fibre Channel, or SDH/SONET. The payload type setting can be used for service identification and performance monitoring purposes. The payload type setting can be set automatically by the ML-Series card, which can detect the client signal type and encode it in the payload header. Alternatively, the payload type setting can be set manually by the user using the command config interface <interface> encmode
<encmode> payloadtype <payloadtype>, where <interface> is the client interface name, <encmode> is the encapsulation mode, such as GFP-F or BMP, and <payloadtype> is the client signal type, such as 10GE LAN or FC-1200. The other options are incorrect because they either state that the payload type setting is recorded within the OTN overhead, which is not true, or that it must be entered manually, which is not necessary. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 21
Suppose a "Channel Absent" alarm is reported on an 1830 PSS node. What is the recommended order for the following troubleshooting steps?
- A. 1. Retrieve the cross-connection (XC) details and see what virave Keys should be present.
2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
3. Retrieve the channel power trace.
4. Check observed Wave Keys against expected Wave Keys. - B. 1. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
3. Check observed Wave Keys against expected Wave Keys.
4. Retrieve the channel power trace. - C. 1. Check observed Wave Keys against expected Wave Keys.
2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
3. Retrieve the channel power trace.
4. Retrieve the cross-connection (XC) details and see what Wave Keys should be present. - D. 1. Retrieve the channel power trace.
2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
3. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
4. Check observed Wave Keys against expected Wave Keys.
Answer: D
Explanation:
Explanation
The recommended order for the troubleshooting steps is B, as follows:
* Retrieve the channel power trace. This step is useful to identify the affected channel and its power level, as well as to check if there are any fluctuations or anomalies in the power trace that could indicate a channel absent issue1.
* Retrieve the cross-connection (XC) details and see what Wave Keys should be present. This step is necessary to verify which Wave Keys are expected to be present on the node, card, and port based on the XC configuration2. Wave Keys are unique identifiers for wavelength tracking that are encoded by Optical Transponders (OTs) into each service wavelength direction3.
* Go to the suspected troubled node / card / port and look at Wave Keys (in / out). This step is helpful to compare the observed Wave Keys with the expected Wave Keys, and to locate the source of the problem. If a Wave Key is missing or mismatched, it means that there is a channel absent issue on that node, card, or port4.
* Check observed Wave Keys against expected Wave Keys. This step is the final solution to resolve the issue and restore the normal operation of the node. The observed Wave Keys should match the expected Wave Keys based on the XC configuration. If not, the XC configuration should be corrected or the faulty node, card, or port should be replaced5. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia, Alcatel-Lucent 1830 PSS-8 and PSS-16 Photonic Service Switch
NEW QUESTION # 22
Consider the exhibit. Given the following power readings, what is the calculated span loss from Node A to Node B?
- A. 2.0 dB
- B. 5.0 dB
- C. 8.0 dB
- D. 10.0 dB
Answer: D
Explanation:
Explanation
The calculated span loss from Node A to Node B is 10.0 dB. Span loss is the difference between the optical power transmitted and received at two points in a network. It can be calculated by subtracting the received power from the transmitted power. In the exhibit, the transmitted power from Node A to Node B is +7.5 dBm, and the received power at Node B from Node A is -2.5 dBm. Therefore, the span loss is +7.5 dBm - (-2.5 dBm) = 10.0 dB. The other options are incorrect because they do not match the calculation. References: Nokia Optical Diagnostics and Troubleshooting Course, Pluggable Optical Modules: Transceivers for the Cisco ONS Family Data Sheet
NEW QUESTION # 23
Consider the exhibit. Given the following power readings, what is the calculated span loss from Node A to Node B?
- A. 2.5
- B. 11.5
- C. 1.5
- D. 8.0
Answer: D
Explanation:
Explanation
The exhibit shows a diagram of a network with two nodes, Node A and Node B, connected by a fiber span.
The diagram also shows the power readings at different points of the span. The calculated span loss from Node A to Node B is the difference between the output power at Node A and the input power at Node B. According to the diagram, the output power at Node A is +3.5 dBm and the input power at Node B is -4.5 dBm.
Therefore, the span loss from Node A to Node B is 3.5 - (-4.5) = 8.0 dB.
NEW QUESTION # 24
Which of the following CLI commands displays a list of the expected and measured output power for the channels whose admin state is up?
- A. show wavekey wtsource
- B. config wavekey power detail
- C. show wavekey wtsource power
- D. config wavekey summary
Answer: C
Explanation:
Explanation
The command show wavekey wtsource power displays a list of the expected and measured output power for the channels whose admin state is up. This command is useful to monitor the power levels of the channels that are encoded with Wave Keys, which are unique identifiers for wavelength tracking. The command output shows the channel number, wavelength, Wave Key ID, Wave Key Code, expected output power, measured output power, and power difference for each channel1. The command can be used on both OTs and amplifiers that support WT capability2. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia
NEW QUESTION # 25

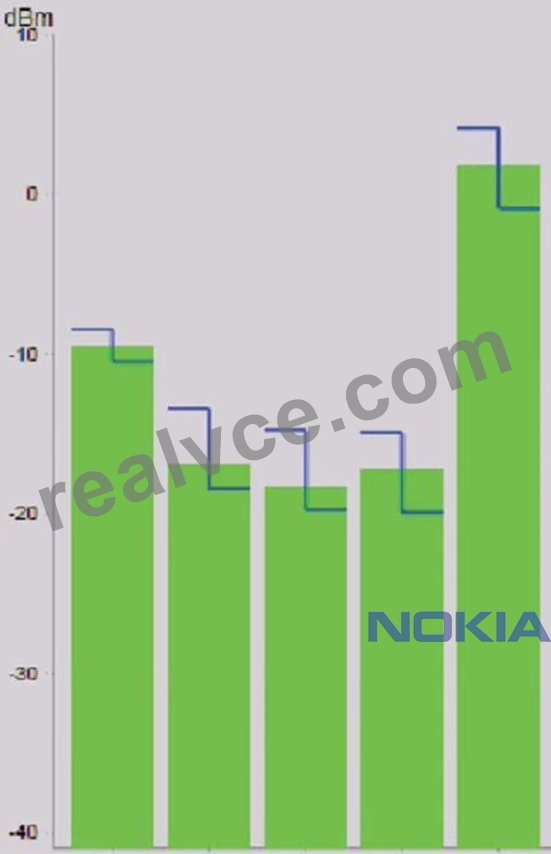

Consider the exhibit. What do the different colored green columns indicate?
- A. Optical power levels measured multiple times against a specific interface, at 24-hour intervals for the same wavelength.
- B. The average optical power levels measured for multiple wavelengths throughout their shared optical path.
- C. Optical power levels measured at different interfaces throughout the optical path of a single wavelength.
- D. Optical power levels measured for multiple wavelengths against a specific interface.
Answer: C
Explanation:
Explanation
The exhibit shows a graph of optical power levels measured at different interfaces throughout the optical path of a single wavelength. The different colored green columns indicate the optical power levels at different points along the optical path, such as the transmitter, the receiver, and the amplifiers. The graph also shows the expected power levels and the allowed deviation range for each point. The graph can be used to monitor the performance and quality of the optical signal and to identify any potential issues or anomalies. The other options are incorrect because they either describe a different type of graph or do not match the exhibit. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 26
Which of the following statements about the Wavelength Tracker (WT) capability is TRUE?
- A. WT uses a unique identifier based on a pair of numbers encoded by Optical Transponders OTs) into each service wavelength direction.
- B. Wave Keys are originated by optical amplifiers.
- C. WT is compatible with other vendor domains, but the user must make sure that Wave Keys are unique on the crossed domains.
- D. WT uses a unique identifier based on a pair of numbers encoded by Raman amplifiers into each service wavelength direction.
Answer: A
Explanation:
Explanation
The statement that WT uses a unique identifier based on a pair of numbers encoded by Optical Transponders (OTs) into each service wavelength direction is TRUE. WT is a feature of the 1830 PSS that allows for automatic identification and tracking of wavelengths across different network elements and domains. WT uses Wave Keys, which are unique identifiers composed of two numbers: a Wave Key ID and a Wave Key Code. The Wave Key ID identifies the OT that generates the wavelength, while the Wave Key Code identifies the wavelength itself within a given OT6. The Wave Keys are encoded by OTs into each service wavelength direction using phase modulation, and can be decoded by other OTs or amplifiers that have WT capability.
WT enables various applications and benefits, such as simplified commissioning, automated wavelength routing, enhanced fault localization, and improved network security. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia, Alcatel-Lucent 1830 PSS-8 and PSS-16 Photonic Service Switch
NEW QUESTION # 27
Which of the following is a passive component in a CDC-F network configuration?
- A. MSH4-FSB Fiber Shuffle Module
- B. WR20-TFM Wavelength Router
- C. IRDM20 Integrated ROADM
- D. 130SCX10 Optical Transponder
Answer: A
Explanation:
Explanation
A passive component in a CDC-F network configuration is the MSH4-FSB Fiber Shuffle Module. This module is used to rearrange the fibers between the CDC-F modules and the wavelength routers, so that each wavelength router can access any of the 96 wavelengths in the C-band. The MSH4-FSB module does not require any power or active components, and it does not perform any optical amplification or switching2. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Nokia 1830 Photonic Service Switch (PSS) | Nokia
NEW QUESTION # 28
Which of the following statements about the "config powermgmt egress 1/2 adjust status command" is TRUE?
- A. The command displays the status of power adjustment on the specified egress amplifier.
- B. The command enables power adjustment feature on the specified egress amplifier, as this feature Is always and only available at the egress amplification stage.
- C. The command enables power adjustment feature on the specified egress amplifier.
- D. The command displays commissioning status and WT decoder usage for the specified egress amplifiers only, as this feature is always and only done in the egress direction.
Answer: C
Explanation:
Explanation
The command config powermgmt egress 1/2 adjust status is used to enable or disable the power adjustment feature on the specified egress amplifier. The power adjustment feature is a function that automatically adjusts the output power of an amplifier to compensate for changes in the input power or the number of channels. This feature can be enabled or disabled on both ingress and egress amplifiers, depending on the network configuration and requirements1. Therefore, the statement C is true. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia
NEW QUESTION # 29
Consider the exhibit. A single directional fiber cut is occurring between two amplifiers in bidirectional configuration. Which node(s) will report a "LD Input LOS" alarm?
- A. Node A and Node B
- B. Node B only
- C. Node C only
- D. Node A only
Answer: B
Explanation:
Explanation
The exhibit shows a diagram of a network of nodes and edges, where a single directional fiber cut is occurring between two amplifiers in bidirectional configuration. The node that will report a "LD Input LOS" alarm is node B only. A "LD Input LOS" alarm indicates that the input signal to the laser diode (LD) of an amplifier is lost or below the threshold3. In this case, node B will not receive any signal from node A due to the fiber cut, and will generate this alarm. Node A will not report this alarm, because it can still receive a signal from node C through the other fiber. Node C will not report this alarm either, because it is not directly affected by the fiber cut between node A and node B. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Troubleshooting Guide for Synchronous Digital Hierarchy - Cisco
NEW QUESTION # 30
A "Power Adjustment Required" alarm was raised on the ingress amplifier in slot 1/10. Which of the following commands should be entered to manually adjust the related amplifier optical power levels?
- A. config powermgmt ingress 1/10 power adjustment
- B. config powermgmt ingress 1/10 scot
- C. config powermgmt ingress 1/10
- D. config powermgmt ingress 1/10 adjust
Answer: D
Explanation:
Explanation
A "Power Adjustment Required" alarm is raised when the optical power levels of an amplifier are out of the expected range and need to be adjusted. To manually adjust the related amplifier optical power levels, the command config powermgmt ingress 1/10 adjust should be entered. This command will initiate a power adjustment process for the ingress amplifier in slot 1/10, which is the input port for the optical line signal. The command will also display the status and results of the power adjustment, such as success, failure, or conditional success. The other commands are incorrect because they either do not initiate a power adjustment process or have invalid syntax. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 31
Which of the following issues can cause a "Loss too low" message to be displayed after a power adjustment has been provided?
- A. Unstable optical power levels
- B. A defective WSS unit
- C. An incorrect EPT network design
- D. A dirty fiber connector
Answer: A
Explanation:
Explanation
A "Loss too low" message can be displayed after a power adjustment has been provided if there is an issue with unstable optical power levels. Unstable optical power levels can be caused by various factors, such as environmental conditions, fiber aging, equipment malfunction, or configuration errors. Unstable optical power levels can affect the accuracy and reliability of the power adjustment process, which relies on measuring the optical loss between two points in the network. A "Loss too low" message means that the measured optical loss is lower than the expected value, which can indicate a problem with the optical signal quality or integrity.
The other issues are incorrect because they either cause a different type of message or do not affect the power adjustment process. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 32
Which of the following statements about using Nokia product documentation in the troubleshooting process is TRUE?
- A. The Customer Release Notes (CRNs) provides instructions to perform the automated provisioning, commissioning, and power balancing functions in a customer network based on the Nokia 1830 PS5 platform.
- B. Before investigating a problem it is important to check the User Provisioning Guide (UPG) if a possible issue has already been acknowledged by the Product Unit (PU).
- C. Before investigating a problem it is important to check the Engineering and Planning Tool User Guide (EPTUG) if a possible issue has already been acknowledged by the Product Unit (PU).
- D. The Customer Release Notes (CRNs) document collects documented solved known issues, new issues discovered after the product software has been released.as well as software upgrade procedures and firmware details.
Answer: D
Explanation:
Explanation
The Customer Release Notes (CRNs) document collects documented solved known issues, new issues discovered after the product software has been released, as well as software upgrade procedures and firmware details. This document is useful for troubleshooting because it can help identify if a problem is related to a known issue or a software bug, and if there is a workaround or a solution available. The CRNs also provide information about the software compatibility and interoperability of different Nokia products and platforms.
The other options are incorrect because the EPTUG and the UPG do not contain information about known issues, and the CRNs do not provide instructions for automated provisioning, commissioning, and power balancing functions. References: Nokia Optical Diagnostics and Troubleshooting Course, Nokia Optical Diagnostics and Troubleshooting Exam
NEW QUESTION # 33
Which of the following commands is used to retrieve the total output power level?
- A. show interface am212 5a 1/6/lineout pm
- B. show interface am2125a 1/6/lineout
- C. show interface am2125a 1/6/lineout detail
- D. show interface am2125a 1/6/lineout wavekey
Answer: C
Explanation:
Explanation
The command show interface am2125a 1/6/lineout detail is used to retrieve the total output power level of the AM2125A amplifier module. This command displays detailed information about the lineout interface, including the current optical power, wavelength, and status. The total output power level is shown as Output Power (dBm) in the output of this command1. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia
NEW QUESTION # 34
Which of the following statements best describes the output of the command: show xc 1?
- A. A list of all boards on all nodes that this cross-connection passes through, along with expected power levels, measured power levels, and allowed power deviations.
- B. A list of cross-connections, including A-end, Z-end, frequency, ID number, OCH trail name, and administrative/operational states.
- C. OCH trail name, ITU channel, administrative/operational states, protection states, and Wave Keys for both directions.
- D. A list of boards that this cross-connection passes through on the local node, along with administrative/operational states, expected power levels, and measured power levels.
Answer: B
Explanation:
Explanation
The command show xc 1 displays a list of cross-connections, including A-end, Z-end, frequency, ID number, OCH trail name, and administrative/operational states. A cross-connection is a logical connection between two ports on an optical network element that allows the transmission of an optical signal from one port to another.
The command can be used to view the configuration and status of the cross-connections on a node or a network. The other options are incorrect because they either describe a different command or provide incorrect information. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide
NEW QUESTION # 35
......
